# Hive Integration

## Introduction

Hive integration means 2 things:

* Read/Write hive metadata. You can read the existing hive table schema and store new created table schema into hive metastore. （create statement will store table schema into hive metastore)
* Read/Write existing hive table. You can do data analytics on hive table directly or join hive table with other data sources.   (select statement can read hive table)

## Configuration

* Set `zeppelin.flink.enableHive` to be true.
* Set `HIVE_CONF_DIR` to be the folder which contains `hive-site.xml`
* Copy the following dependencies into flink lib folder
  * flink-connector-hive\_2.11-{flink.version}.jar
  * flink-hadoop-compatibility\_2.11-{flink.version}.jar
  * Copy hive-exec-2.x.jar to flink lib if you are using hive 2.x, and copy hive-exec-1.x.jar, hive-metastore-1.x.jar, libfb303-0.9.2.jar and libthrift-0.9.2.jar to flink lib folder if you are using hive 1.x
  * Set `zeppelin.flink.hive.version` to be the hive version you are using (this is only required for flink 1.10, you don't need to set it if you are using flink 1.11 or afterwards)
* Make sure you have started hive metastore properly

## Query Hive

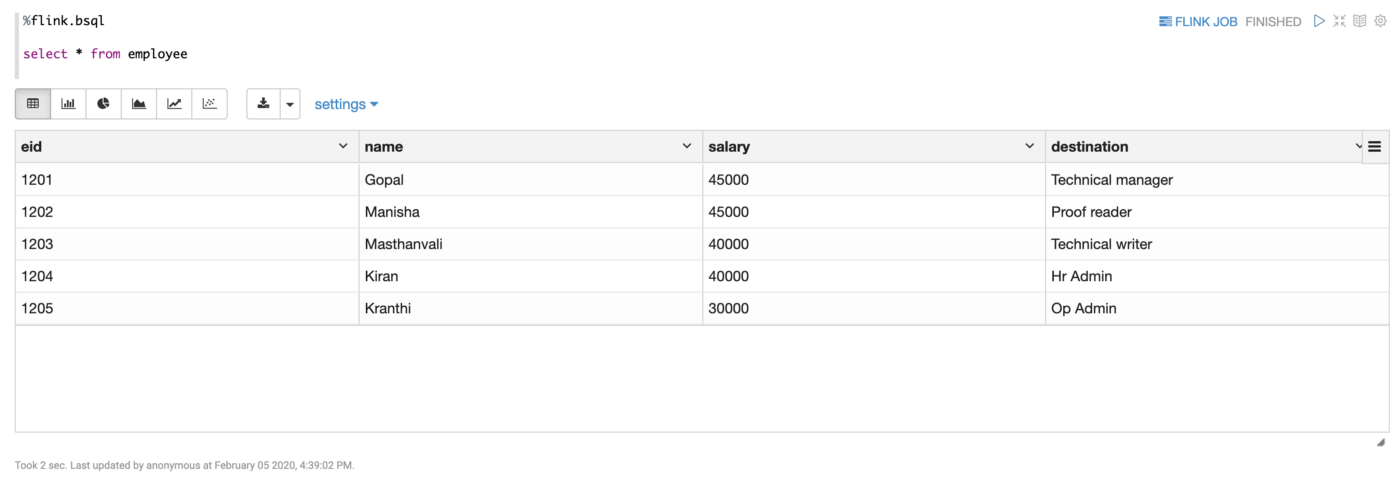

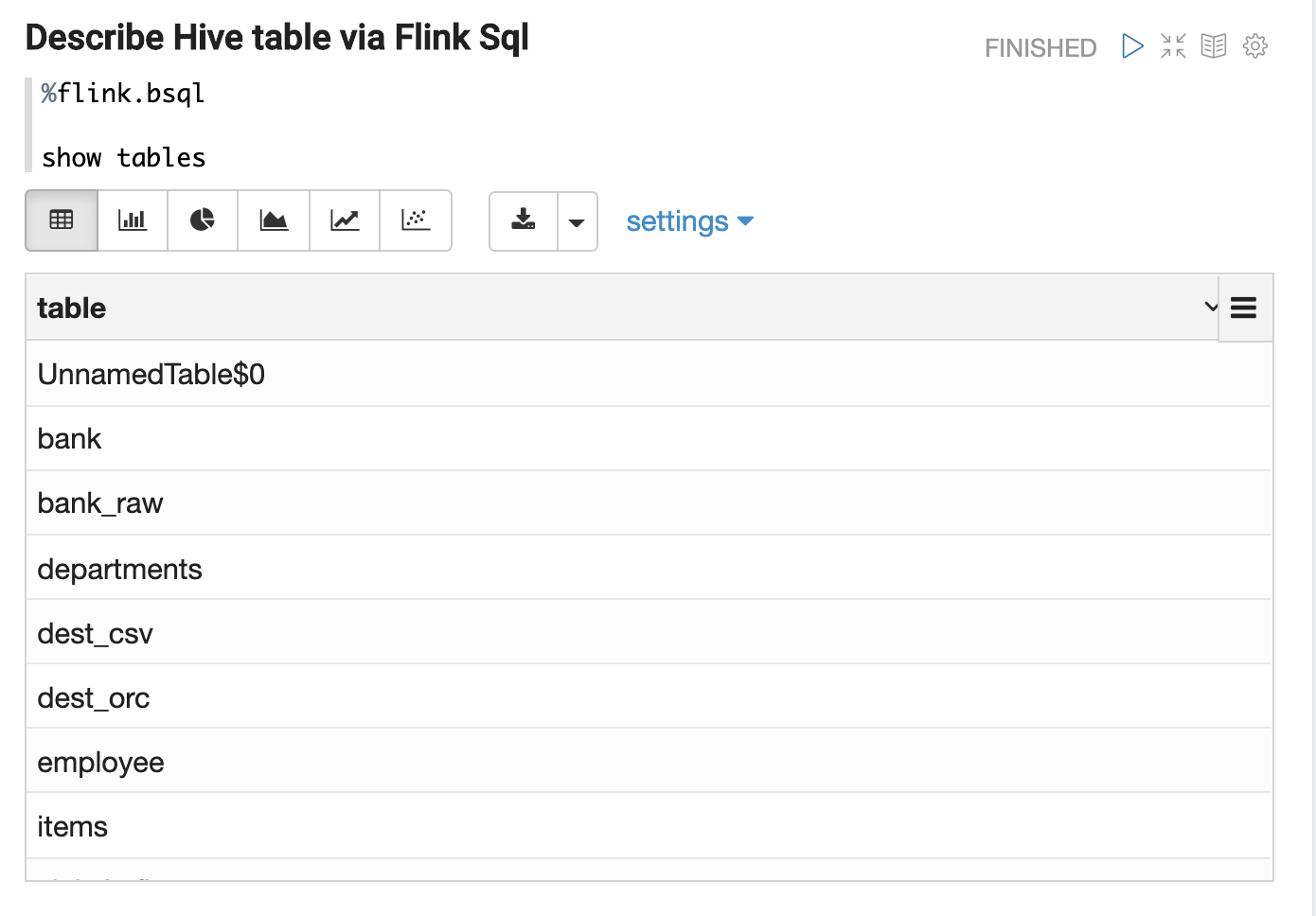

After the above configuration, you can query HiveCatalog and read hive data as following

![](https://3876819094-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MEawVq7dzi4LX1-ifgT%2F-MGHxnfdWQ4jyiimQL-P%2F-MGHzeV_BRwn0CaTbJLY%2Fimage.png?alt=media\&token=966fee58-db3a-4134-a9c6-211b5525af18)

![](https://3876819094-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MEawVq7dzi4LX1-ifgT%2F-MGHxnfdWQ4jyiimQL-P%2F-MGHziPOz-rAZHWaN1sx%2Fimage.png?alt=media\&token=2cff5939-3b90-4ec2-bcef-28000cb3d366)

## Video Tutorial

{% embed url="<https://youtu.be/S-qIeFZ9Cko?list=PL4oy12nnS7FFtg3KV1iS5vDb0pTz12VcX>" %}
